3D Printed Production Parts (200 & 300 Series)
The table below contains the STL files for each of the printed components on the 200 and 300 series machines. Original machine parts are printed out of black PETG material. ABS and PC would also be suitable materials for these components.
If you have any questions or don't find the part you are looking for here, feel free to let us know by submitting a ticket here: https://support.3dplatform.com/portal/en/newticket
Preview: | Description: | Download Link: |

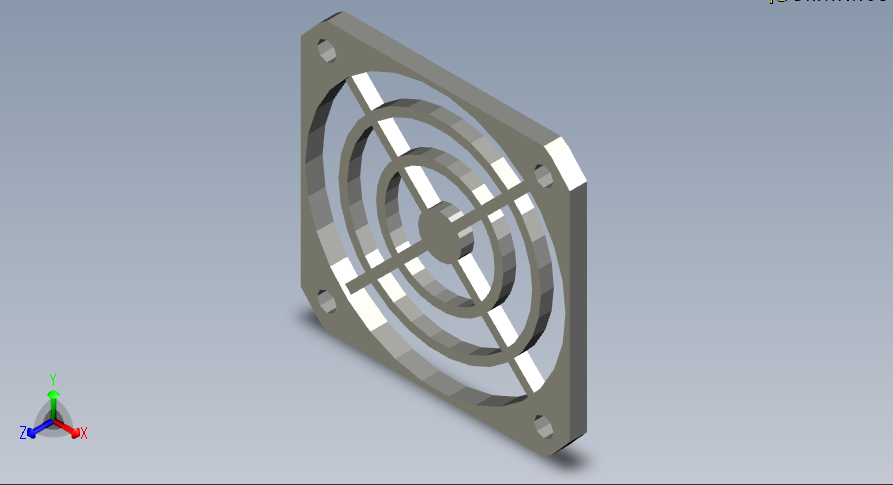

| 60mm Fan grill (used for electrical and control box fans) | ||
200 Series Z home sensor mounting bracket | ||
300 Series Z home sensor mounting bracket | ||

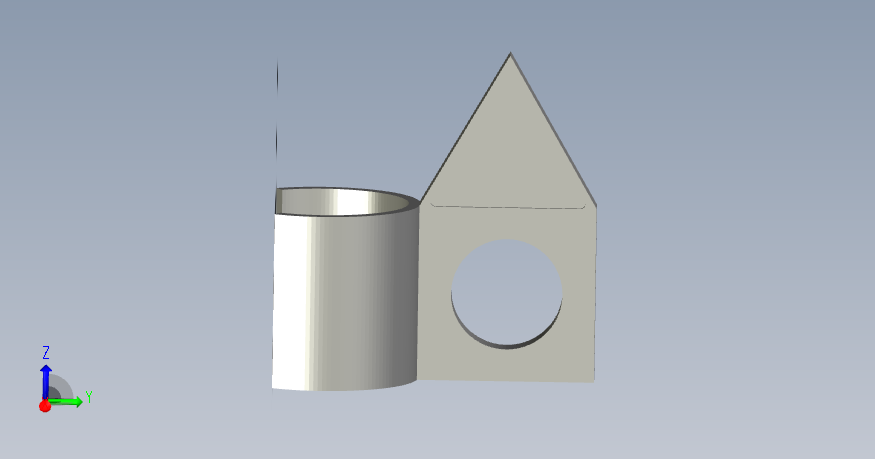

Bed temperature LED light mount | ||
200/300 Series glass bracket | ||
HFE 300 extruder fan shroud (only for fans mounted on the extruder itself, not on the machine) | ||

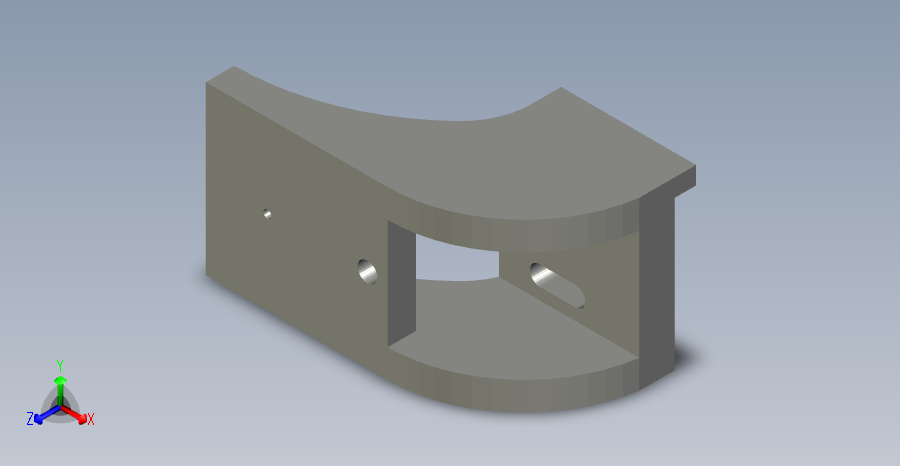

BL touch mounting bracket (For machines without the electrical tower mounted on the back) | ||
Latest - BL touch mounting bracket (For machines with the electrical tower mounted on the back) | Download | |

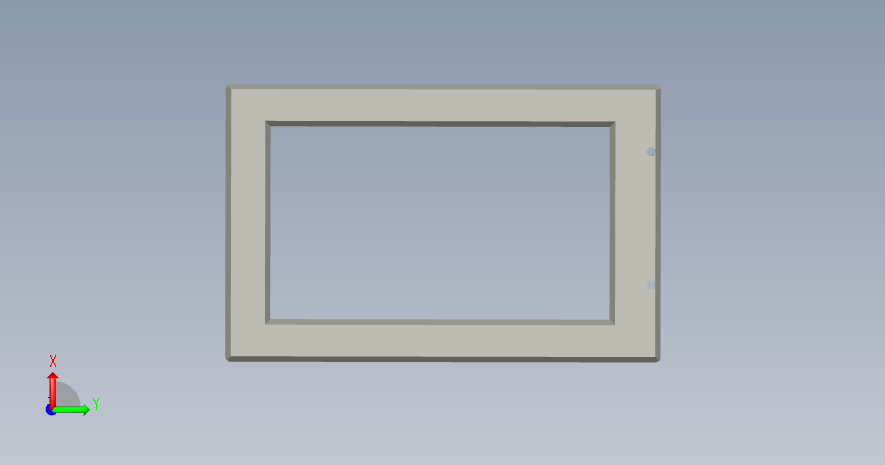

Latest - Touchscreen bezel (for integrated screens only) | ||

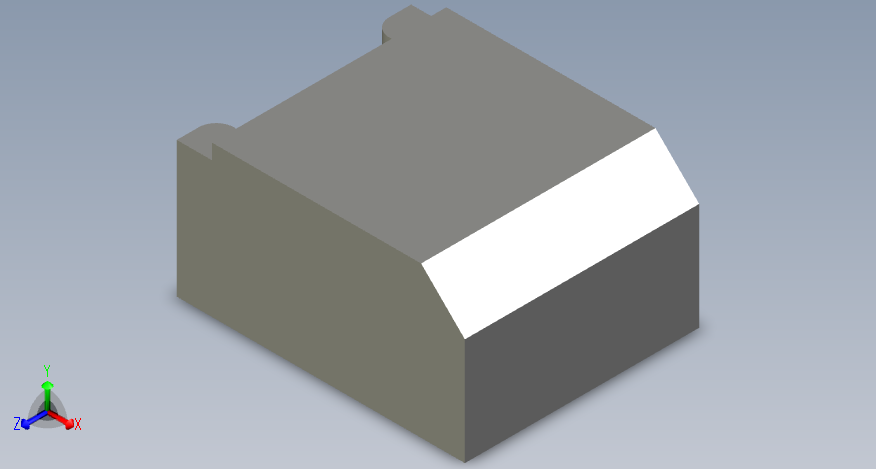

Z axis motor/wire cover | ||

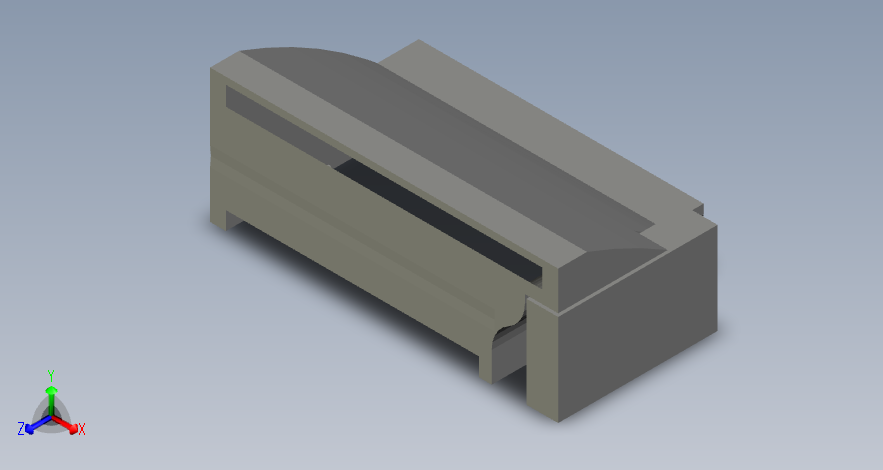

200/300 Series part cooling fan duct (left side) * This part should be printed at a 45 degree angle without support material by placing the flat surface (with triangular holes) down on the build platform. | ||
200/300 Series part cooling fan duct (right side) * This part should be printed at a 45 degree angle without support
material by placing the flat surface (with triangular holes) down on the
build platform. | ||

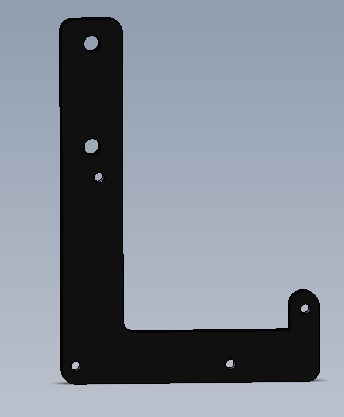

Fan Mounting Bracket for New HFA Extruder | ||

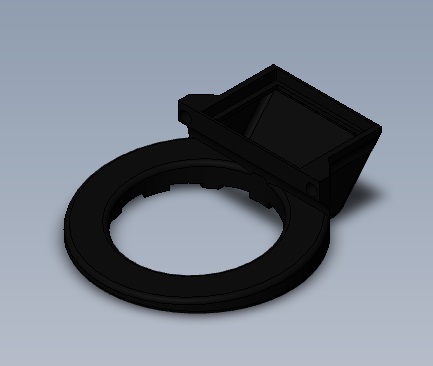

Fan Shroud for New HFA Extruder |
